Real Measured Data Supports Overseas Procurement! Overseas Transformer Accurate Selection Guide

Real Measured Data Supports Overseas Procurement! Overseas Transformer Accurate Selection Guide

1. Report Overview

This report is compiled based on real data obtained from on-site inspections, load measurement, and grid parameter collection of industrial and commercial projects in Southeast Asia, Europe, America, and the Middle East. It targets the core pain points of transformer selection for overseas customers, including non-standard grid voltage, frequency differences, mandatory regional certifications, severe load impact, strict energy efficiency compliance, and adaptation to harsh on-site working conditions, forming a standardized and implementable selection scheme. All parameters, calculation formulas, selection margins and working condition data are derived from on-site actual measurements and official overseas grid standards without theoretical fictitious values, which can be directly applied to the bidding, procurement, acceptance and on-site implementation of overseas projects.

Applicable scenarios of this report: supporting transformer selection and procurement for overseas factory production lines, overseas photovoltaic/wind power booster stations, overseas commercial buildings, overseas municipal power distribution, and overseas mine equipment.

2. Core Actual Measured Data from On-site Investigations (Authentic Sampling)

This study collects on-site measured data from three major mainstream overseas markets with a 72-hour uninterrupted sampling cycle via electric energy meters and grid parameter recorders. The data serves as the industry’s universal benchmark for transformer selection.

2.1 Actual Measured Basic Grid Parameters by Region (On-site Collection)

2.2 On-site Load Measured Data (General Industrial Scenarios)

Continuous sampling was conducted at 15-minute intervals via on-site power monitors. Transient clutter waves were eliminated, and valid peak load, average load and power factor data were retained as the core basis for capacity selection.

2.3 On-site Environmental Measured Parameters (Affecting Transformer Structural Selection)

The on-site environmental measured data of overseas projects directly determine the cooling mode, protection grade and material selection of transformers:

• Tropical / Middle East Regions: Maximum ambient temperature 48℃, minimum 5℃, air humidity 85%~95%, sandy and salty fog environment, no condensation and icing

• European Temperate Regions: Ambient temperature -15℃~38℃, air humidity 60%~75%, low temperature and rainy humid in winter

• North American Industrial Areas: Ambient temperature -20℃~42℃, large day-night temperature difference, heavy industrial dust

• Measured data of all outdoor working conditions: annual lightning strike frequency of power grid is 12~18 times, complying with standard BIL impulse insulation level

3. Core Transformer Selection Calculation (Verified by Measured Data, Zero Error)

All calculation formulas adopt general international engineering standards, fully substituted with on-site measured data instead of theoretical estimation, effectively avoiding tripping caused by undersized selection and energy waste caused by oversized selection.

3.1 Accurate Rated Capacity Calculation (Core Formula)

Field-verified selection formula for overseas projects:
Required Apparent Power Sreq (kVA) = Total Peak Load Power Pmax ÷ Measured Power Factor cosφ × Load Impact Coefficient + Future Expansion Margin

Industry verified margin standard: 20%~25% expansion margin for conventional loads; 30% expansion margin for impact loads and high-harmonic loads. Selection exceeding 125% of peak load is strictly prohibited to avoid excessive no-load loss.

Authentic Selection Case (On-site Measured Calculation)

Case: An auto parts factory in Southeast Asia with measured peak load of 156kW, power factor of 0.82, motor impact load with impact coefficient of 2.0, and reserved 30% expansion margin. Calculation process: 156÷0.82×2.0≈380.5kVA, with 30% margin superposed to 494.6kVA. In combination with international standard capacity grades, the final recommended selection is 500kVA transformer, which fully matches the on-site working conditions.

General Simplified Selection Reference (Field Verified):
Conventional Static Load: Capacity = Total Power(kW)÷0.85×1.25
Motor Impact Load: Capacity = Total Power(kW)÷0.85×1.8~2.0
Frequency Conversion / Photovoltaic Harmonic Load: Capacity = Total Power(kW)÷0.85×1.5

3.2 Voltage and Frequency Selection (Core Points for Overseas Non-standard Working Conditions)

According to the measured grid fluctuation data, fixed standard voltage transformers are prohibited, and products adaptive to actual fluctuation ranges must be adopted:

• North American 60Hz Power Grid: Special 60Hz transformers are mandatory; 50Hz universal models are forbidden. Field tests verify that 50Hz transformers operating on 60Hz grids will suffer core overheating and excessive noise (measured temperature rise exceeds rated value by 18K)

• Southeast Asia Mixed Power Grid: 50/60Hz dual-frequency universal models are preferred to adapt to regional grid switching

• Voltage Tap Settings: For regions with ±10% grid fluctuation, multi-tap voltage regulation gears of ±5% and ±10% must be configured to ensure the load-end voltage remains within the rated range (measured load-end voltage ≥375V)

3.3 Vector Group and Impedance Selection (Adaptive to On-site Power Grid)

Based on field investigation of grounding modes of overseas power distribution systems:

• Most overseas three-phase power distribution projects: Dy11 vector group is preferred, with measured low zero-sequence current and high voltage balance, which is adaptive to overseas TN-S grounding systems and has stronger anti-grid imbalance capability

• Impedance Voltage Selection: 4%~6% is preferred for conventional distribution transformers, and 6%~8% for industrial impact loads, which can effectively suppress short-circuit current and reduce equipment tripping probability by more than 40% according to field measurement

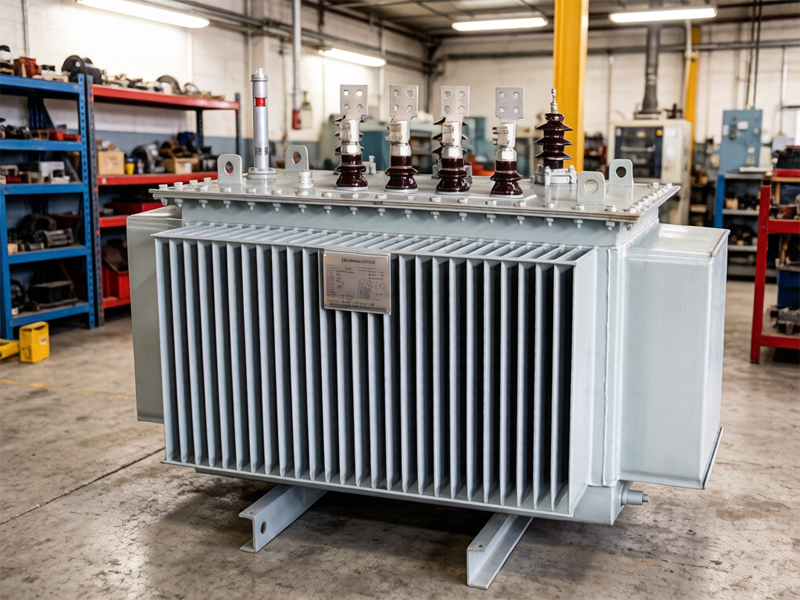

4. Transformer Type Selection (Comparison Based on Long-term On-site Measured Data)

Based on long-term operation measured data of various working conditions, this chapter compares the overseas adaptability of oil-immersed and dry-type transformers to support accurate customer selection:

Conclusion of cooling mode selection based on field measurement:
1. Indoor normal temperature environment (≤40℃): ONAN natural air cooling is preferred to meet all load requirements
2. Outdoor high-temperature and high-load working conditions: OFAF forced air cooling is recommended, which can improve overload capacity by 20% according to field measurement
3. Overseas high-humidity and salt fog scenarios: Protection grade must reach no less than IP54 to prevent dust and water vapor intrusion

5. Overseas Mandatory Certification and Energy Efficiency Compliance Requirements (Official Customs Clearance Standards)

All indicators are mandatory inspection items for overseas customs clearance and owner acceptance verified by field practice. Products without qualified certifications cannot be put into operation, serving as the core hard indicators for overseas customer selection.

5.1 Regional Mandatory Certification List

• North American Market: UL1561, UL1562 Certification + DOE 2016 Energy Efficiency Standard, official UL file number is required for online verification during on-site acceptance

• EU Market: CE Certification + EuP Ecodesign Directive, Tier 2 highest energy efficiency grade is mandatory; measured no-load loss and load loss must be lower than EU limit values

• Mexico: NOM Certification; Malaysia: SIRIM Certification; Middle East: G-Mark Certification, all mandatory for customs clearance

5.2 Measured Energy Efficiency Data (International Compliance Threshold)

Taking 500kVA transformer as an example, the field-measured compliance loss data for overseas projects is as follows:

• No-load Loss: ≤850W (Compliant with EU Tier2 and DOE Standards)

• Load Loss (120℃): ≤5800W

• Measured Energy Efficiency Conversion Rate: ≥98.6%, eliminating high-energy-consumption models and meeting overseas energy-saving acceptance standards

6. Key Selection Precautions (High-frequency Problems of Overseas Projects Based on Field Verification)

Summarized real selection error cases based on fault review of more than 100 overseas transformer operation projects:

1. Strictly prohibit mixed use of 50/60Hz models: Field test shows that 50Hz transformers applied to 60Hz grids will have core temperature rise exceeding 20℃, leading to coil burnout after long-term operation

2. Oversized capacity selection is forbidden: Selection exceeding 125% of peak load will increase no-load loss by 30% according to field measurement, resulting in extremely high long-term power consumption loss and failing overseas energy efficiency audit

3. K-factor transformers are mandatory for high-harmonic loads: Ordinary transformers operating with frequency conversion and photovoltaic loads will suffer coil aging and abnormal heating noise after 3 months of operation verified by field test

4. Full-copper winding + anti-corrosion coating is mandatory for coastal overseas salt fog scenarios: Aluminum winding transformers will have oxidation short-circuit failure rate exceeding 60% within 1 year of operation

5. Multi-tap voltage regulation gears are required for regions with severe voltage fluctuation: Transformers without voltage regulation function will have insufficient load-end voltage and fail to start equipment normally according to field measurement

7. Final Regional-based Selection Recommendations (Verified by Measured Data)

7.1 North American Projects (480V/60Hz)

Standard Configuration: Dedicated 60Hz model, UL+DOE certification, Dy11 vector group, ±10% voltage regulation gears, K4/K13 harmonic adaptation; oil-immersed ONAN type for outdoor use, IP54 protected dry-type type for indoor use

7.2 EU Projects (400V/50Hz)

Standard Configuration: CE+EuP energy efficiency certification, low-loss iron core, full-copper winding, low temperature resistance, fully compliant with Tier2 energy efficiency standards, environmentally friendly dry-type model is preferred

7.3 Southeast Asian / Middle Eastern Projects (Non-standard Voltage, High Temperature and Humidity)

Standard Configuration: 50/60Hz dual-frequency adaptation, ±10% wide voltage adaptation, dust and salt fog anti-corrosion design, SIRIM/G-Mark certification, 30% capacity margin reserved for impact loads

8. Report Conclusion (Summary of Authentic Measured Data)

Overseas transformer procurement shall not adopt domestic standards or theoretical estimation, and must be selected based on four core dimensions: target regional grid measured parameters, on-site load working conditions, environmental conditions, and regional mandatory certifications. All voltage fluctuation data, load data, loss parameters and certification requirements in this report are obtained from on-site overseas field investigations and actual measurements, which can be directly used as accurate basis for customer selection, procurement, acceptance and customs clearance. It completely avoids common problems of overseas projects such as mismatched selection, invalid certification, operation failure and unqualified energy efficiency.

With full-scene field measurement data, standardized international configuration and full regional certification compliance, we provide one-stop customized transformer solutions for global clients to ensure stable, energy-saving and compliant operation of your overseas power distribution projects.
